NABL Service for Dimension

Sr No.

Description

Range

Master Use for Calibration

1

Vernier Caliper
Plain / Dial / Digital
L.C.= 0.01/0.02/0.05 mm

0-1000 mm

Caliper Checker & Slip Gauge Set

2

Depth Gauge
Plain/Dial/Digital
L.C.= 0.01/0.02/0.05 mm

0-300 mm

Slip Gauge Box & Long Slip Gauge

3

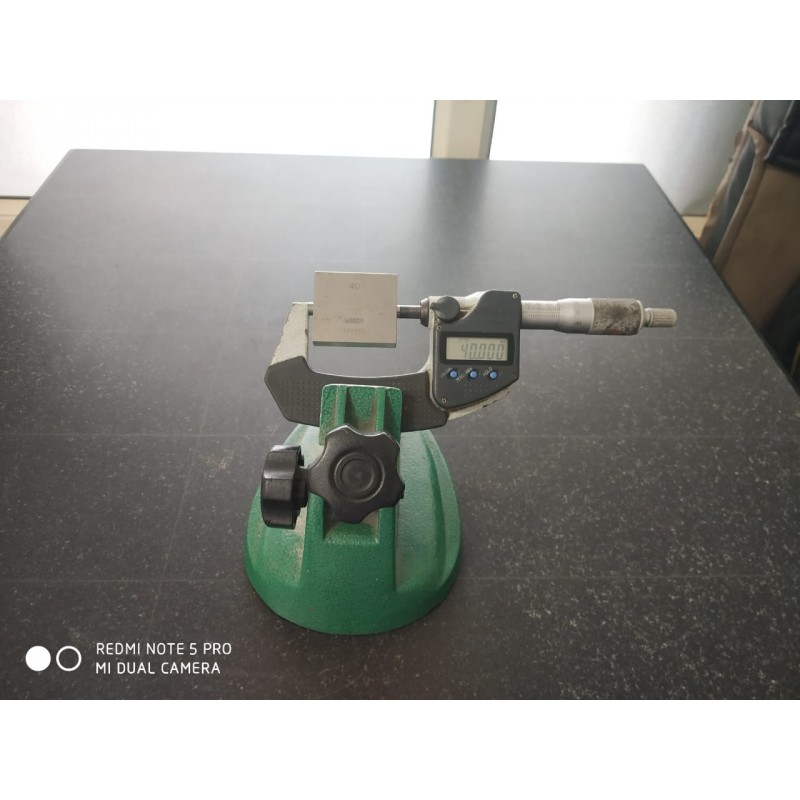

External Micrometer
Plain/Dial/Digital
L.C.= 0.001mm upto 150 mm & above 0.01 mm

0 to 1000 mm

4

Depth Micrometer
(Interchangeable Rods)
L.C.= 0.001 upto 150 mm & above 0.01 mm

up to 300 mm

5

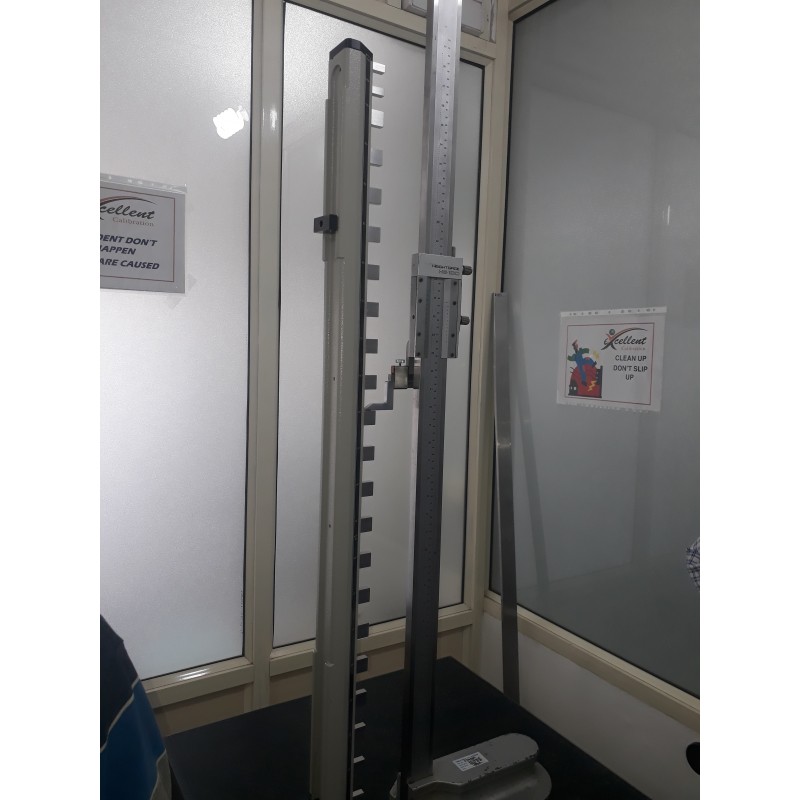

Height Gauge
Plain/Dial/Digital
L.C.= 0.01/0.02 mm

0-1000 mm

Caliper Checker & Surface Plate

6

Micrometer Setting Std.

0 - 975 mm

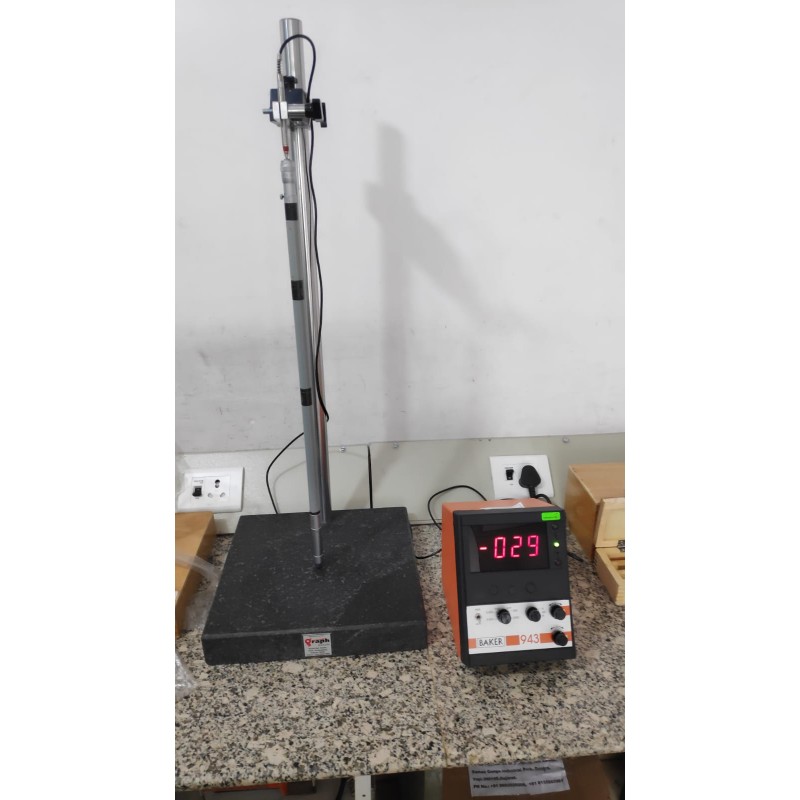

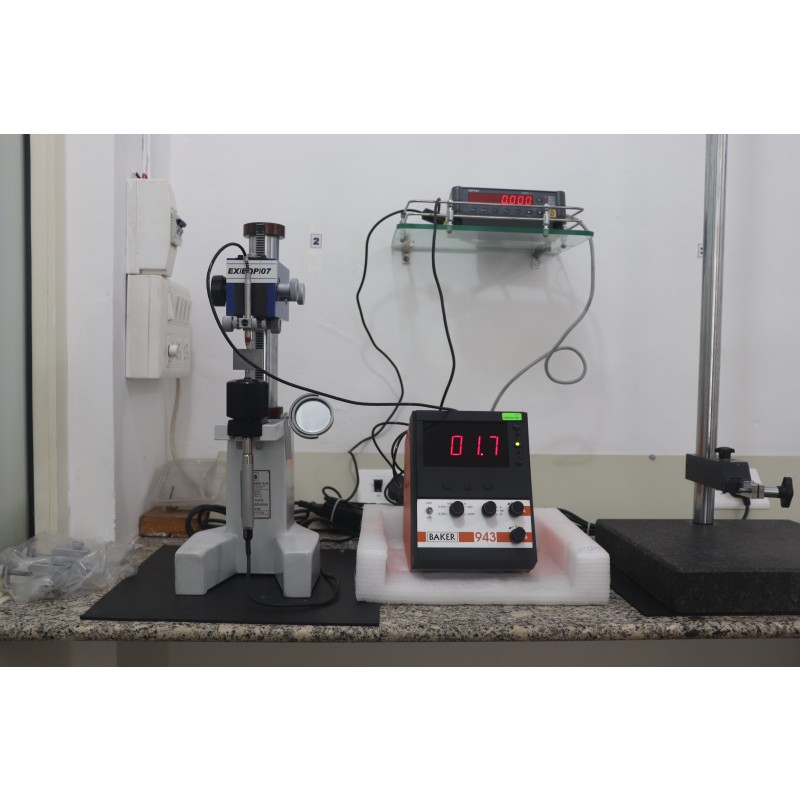

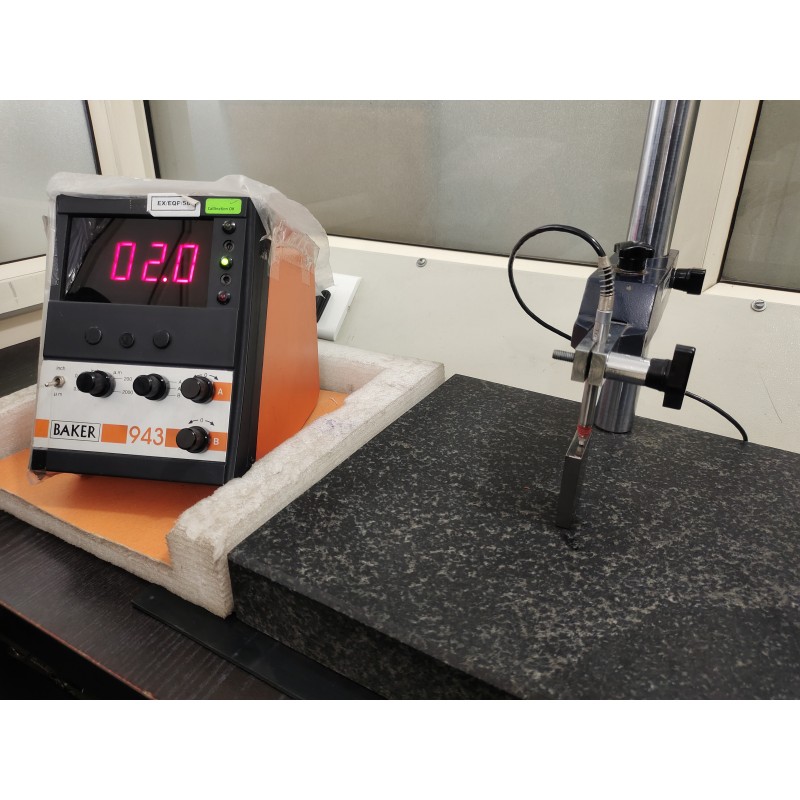

Slip Gauge Box & Long Slip Gauge & Electronic Probe With DRO

7

Internal Micrometer
L.C.= 0.01 mm

50-1000 mm

Electronic Comparator, Slip gauge Blocks, Long Slip Gauges

And Internal Micro checker

8

Inside Dial Caliper
L.C.= 0.001/0.01 mm

15-135 mm

Slip Gauge Set Box

And Internal Micro checker

9

Bore Gauge
(For Transmission Accuracy check Only)
L.C.=0.001mm/0.01mm

10-400 mm

Dial Calibration Tester

10

Lever Type Dial Gauge/
L.C.= 0.001/0.01 mm

0-0.8 mm

Dial Calibration Tester

0-0.14 mm

0-1 mm

11

Plunger Dial gauge
Dial/Digital
L.C.= 0.001/0.01 mm

0 - 50 mm

Dial Calibration Tester,

Slip Gauge Blocks

12

Thickness Gauge
Dial/Digital
L.C.= 0.001/0.02 mm

0 - 25 mm

Slip Gauge Blocks

13

Snap Gauge
(Plain / Dial)
L.C.=0.001mm/0.01mm

Up to 100 mm

Slip Gauge Set

14

Pistol Type Caliper

0 to 150mm

Slip Gauge Blocks

15

Coating Thickness Gauge
DFT meter/ Coatmeter
L.C.= 0.1/1 mm

0.1 to 2.0mm

Master Foils

16

Foils Of Coating Thickness Gauge

Upto 5000 mm

Electronic Probe With DRO &

Digital Micrometer

17

Ultrasonic Thickness Gauge
L.C.=0.01mm

Upto 400 mm

Slip Gauge Blocks And Long Slip Gauges

18

Feeler gauge (set)

0 mm to 2 mm

Digital Micrometer

19

Measuring Pins

0.5 mm to 20 mm

Slip Gauge Set And Electronic Probe With DRO

20

Cylindrical Plain Plug Gauge

Up to 200 mm

Slip Gauge Set And Electronic Probe With DRO

21

Spirit Level (Sensitivity :10 µm/m)

L.C 0.01 / 0.02 mm/m

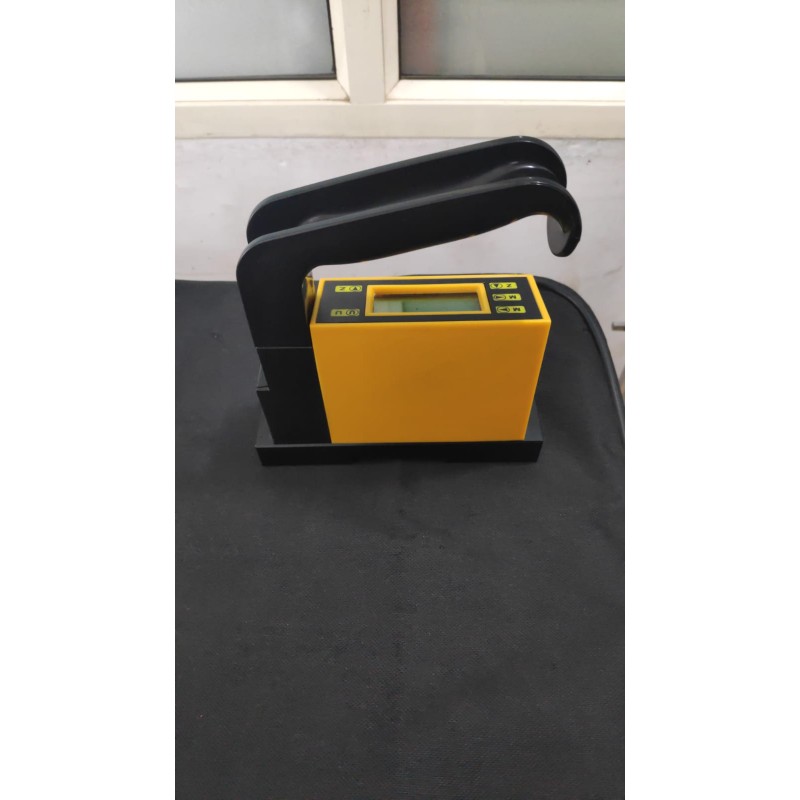

Electronic Level Meter

22

Surface Plate (On Site)
(Granite/Cast Iron)

250 mm × 250 mm to 2000 m x 2000 mm

Electronic Level Meter

23

Sound Level meter (94db to 114db Fix point)

94db & 114db

Sound Level Calibrator

24

Tachometer/Speed Meter - Contact Type

20RPM to 40000 RPM

Digital Tachometer &

Motorised Source With Strip

Tachometer/Speed Meter - Non Contact Type / RPM Meter/Centrifuge

20RPM to 99950 RPM

25

Vibration Meter

Acceleration - 0.5m/s2 to 14m/s2

Vibration

Meter With Shaker

Velocity - 1mm/s to 65mm/s

26

Bevel / Angle protector L.C 5 min

Up to 360⁰

Angle Gauge

Combination Set
/Degree Protractor (L.C.: 1°)

0⁰ to 90⁰ to 0⁰

Angle Gauge

27

Measuring Tape / Pie Tape L.C. : 0.5 mm , 1 mm

0 to 50 meter

Tape & Scale Calibrator

28

Measuring Scale : 0.5 mm,1 mm

0 to 1000 mm

Tape & Scale Calibrator

29

Test Sieves

5 mm to 150 mm

Digital Vernier Caliper
